Attribute precedence

When two components in the same geometry have an attribute with the same name, the attribute on the “lower level” of geometry is used, so:

Intrinsic attributes

Intrinsic attributes are computed values derived from the geometry that you can access as if they were attributes. For example:

Detail intrinsic:pointcount Number of points in the geometry
Detail/primitive intrinsic:bounds Bounding box of the geometry
Primitive intrinsic:measuredarea Surface area of the geometry.
Primitive intrinsic:memoryusage Amount of memory used by the primitive.

Attributes

Dictionary attributes

Since Houdini 18.5, SOP geometry supports dictionary attributes, an attribute type where each element (point, vertex, primitive/face, or the whole geometry/detail) can store a set of key/value pairs.

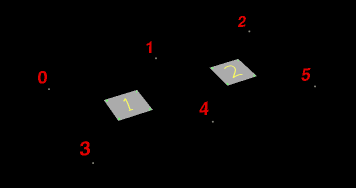

Indexing and limit variables

You may see the following “pseudo-attributes” in VEX snippets. They represent the number of the current element being processed (for example, the point number), and the total number of elements in the geometry/list. See indexing and limit variables in VEX snippets for more information.

@elemnum@ptnum@primnum@vtxnum Represent the number of the current element when a VEX snippet is run.
@numelem@numpt@numprim@numvtx Represent the total number of elements in the geometry/list when a VEX snipped is run.

Geometry attributes

P vector Point position. The viewport uses this to lay out the points of the model in 3D space. You can overwrite this attribute to move the point. On point
N vector Normal direction. You can overwrite this attribute to change the normal
v vector Velocity. The renderer uses this attribute to know where to add motion blur. This attribute is not computed automatically, but several nodes, especially particle DOPs, can set/use it. You can add velocity to points using the Trail SOP.
id int A unique element ID. This is not the same as the element number (for example, the point number). This is an attribute you can, for example, assign to points to keep track of them even if the point numbers change (which can happen if the number of points changes). Particle DOPs often set/use this attribute.
name string This is a value you can set on primitives, such as volumes or packed primitives, to be able to find them in code by name. Some nodes set/read this attribute
piece int Nodes the break up geometry into pieces will often set this attribute so you can tell which polygonal faces are part of the same piece. Faces in the same piece will share the same value in their piece attribute. Other nodes may use this attribute to operate on pieces.

Sizes and rotations

pscale float Uniform scaling factor. This is used in different ways in different places. For particle/point rendering, it controls the size of the particle/point (in world space units) at render time. For instancing, you can use it to uniformly scale the instanced geometry.
scale vector Whereas pscale is a single uniform scaling factor in all axes, this attribute lets you scale non-uniformly along each axis separately. See the pscale attribute for more information.
width float When rendering open curves, sets the line width (in world space units) at render time. If this attribute does not exist, Mantra renders the open curve a thin line instead of as a ribbon with thickness. On point
lod float Level of detail. This may be used in instancing. On detail, prim
spritescale vector When displaying particles using sprint images, this gives additional sprite scaling over pscale. Default (1, 1, 1) On point
spriterot float When displaying particles using sprint images, this gives sprite rotation (around camera angle) in degrees. Default 0 On point

Particle attributes

force vector The force attribute on the current point. This is set/used by some particle DOPs. It represents a change to the particle’s position computed by adding up all the forces acting on the particle.
rest vector Conventional name for an attribute containing each point’s rest position, used by various nodes. Some shaders can use this rather than P, so procedural textures will stick even if you deform your geometry. On point
torque vector The torque attribute on the current point. This is set/used by the Torque DOP to spin particles.
up vector Represents the up vector of a particle’s local space. This is used for instancing geometry onto a point. You can overwrite this attribute to change the particle’s orientation.
accel vector Obsolete, used by old POPs. The new DOP particle nodes use the force attribute instead.
backtrack vector4 Obsolete. Used by old POPs to store the particle’s previous position
orient vector4 Quaternion orientation of a particle. Allows fully specifying rotation, whereas up only orients along a single axis. If this exists, it is used for instancing geometry onto a point
rot vector4 An additional offset-quaternion applied after all other attributes, used when instancing geometry onto a point.
nextid int Detail attribute storing the largest particle ID, allowing Houdini to create new particle ids efficiently
pstate int A bit field encoding different pieces of information about a particle’s state (for example, whether it’s alive, whether it’s stopped, whether it collided in the previous frame, and so on). Various particle DOPs read and write this attribute

The pstate value is the sum of the following flags:

0x01 Is a “primary” particle (not birthed from an existing particle)
0x02 Will die before the next frame
0x04 Stopped
0x08 Has collided
0x10 Stuck to static or moving geometry
0x20 Is associated with a rigid body dynamic simulation
0x40 Active
0x80 Motion is overridden by a CHOP

Shader overrides

Most shaders will use the override attributes to change how elements with these attributes are shaded.

Cd vector Diffuse color override. The viewport uses this to color OpenGL geometry
Alpha float Alpha transparency override. The viewport uses this to set the alpha of OpenGL geometry
Cs vector Specular color override
Cr vector Reflect color override
Ct vector Transmit color override
Ce vector Emission color override
rough float Roughness override
fresnel float Fresnel coefficient override
shadow float Shadow intensity override
sbias float Shadow bias override

Rendering attributes

uv vector The UV coordinates of the point/vertex. The first two elements of this vector contain the current U and V coordinates. Note that uv is Houdini’s conventional attribute name for storing texture coordinates. You can store texture coordinates in other attributes, so you can have multiple UV layouts on the same geometry. Most texture-related nodes have a field to let you specify the name of the UV attribute to use. On point, vertex
material string The node path to the material to use to shade this primitive. Overrides the object’s material
instance string The instance attribute on the current point, containing a path to the geometry instanced on the point. This can be a file path to a geometry file, or an op: path to a Geometry object or geometry node. You can overwrite this attribute to change the instanced geometry. On detail, prim
rishade string Detail/primitive. The name of a RenderMan shader. On detail, prim

Attributes by usage

by Kunz

Global Variables

A list of variables available in wrangles. The type indicator isn't necessary, but included as a reminder.

// Available in all SOP wrangles
f@Frame     //The current floating frame number, equivalent to the $FF Hscript variable
f@Time      //The current time in seconds, equivalent to the $T Hscript variable
i@SimFrame  //The integer simulation timestep number ($SF), only present in DOP contexts.
f@SimTime   //The simulation time in seconds ($ST), only present in DOP contexts.
f@TimeInc   //The timestep currently being used for simulation or playback.

// Available in Attribute Wrangle (point, vertex, primitive and detail)
v@P         //The position of the current element.
i@ptnum     //The point number attached to the currently processed element.
i@vtxnum    //The linear number of the currently processed vertex.
i@primnum   //The primitive number attached to the currently processed element.
i@elemnum   //The index number of the currently processed element.
i@numpt     //The total number of points in the geometry.
i@numvtx    //The number of vertices in the primitive of the currently processed element.
i@numprim   //The total number of primitives in the geometry.
i@numelem   //The total number of elements being processed.

// Available in Volume Wrangle
v@P                     //The position of the current voxel.
f@density               //The value of the density field at the current voxel location.
v@center                //The center of the current volume.
v@dPdx, v@dPdy, v@dPdz  //These vectors store the change in P that occurs in the x, y, and z voxel indices.
i@ix, i@iy, i@iz        //Voxel indices. For dense volumes (non-VDB) these range from 0 to resolution-1.
i@resx, i@resy, i@resz  //The resolution of the current volume.

Common Geometry Attributes

Frequently used attributes. Houdini knows to cast these to the appropriate VEX datatype.

// Int
@id         // A unique number that remains the same throughout a simulation.

// Float
@pscale     // Particle radius size.  Uniform scale.  Set display particles as 'Discs' to visualize.
@width      // Thickness of curves.  Enable 'Shade Open Curves In Viewport' on the object node to visualize.
@Alpha      // Alpha transparency override.  The viewport uses this to set the alpha of OpenGL geometry.
@Pw         // Spline weight.

// Vector3
@P          // Point position.  Used this to lay out points in 3D space.
@Cd         // Diffuse color override.  The viewport uses this to color OpenGL geometry.
@N          // Surface or curve normal.  Houdini will compute the normal if this attribute does not exist.
@scale      // Vector scale.  Allows directional scaling or stretching (in one direction).
@rest       // Used by procedural patterns and textures to stick on deforming and animated surfaces.
@up         // Up vector.  The up direction for local space, typically (0, 1, 0).
@uv         // UV texture coordinates for this point/vertex.
@v          // Point velocity.  The direction and speed of movement in units per second.

// Vector4
@orient     // The local orientation of the point (represented as a quaternion).
@rot        // Additional rotation to be applied after orient, N, and up attributes.

// String
@name       // A unique name identifying which primitives belong to which piece.  Also used to label volumes.
@instance   // Path of an object node to be instanced at render time.

Copying and Instancing Attributes

When copying or instancing, Houdini looks for these point attributes to transform each copy/instance.

p@orient                    // Orientation of the copy.
f@pscale                    // Uniform scale.
v@scale                     // Non-uniform scale.
v@N                         // Normal (+Z axis of the copy, if no p@orient).
v@up                        // Up vector of the copy (+Y axis of the copy, if no p@orient).
v@v                         // Velocity of the copy (motion blur), used as +Z axis if no p@orient or v@N.
p@rot                       // Additional rotation (applied after the orientation attributes above).
v@P                         // Translation of the copy.
v@trans                     // Translation of the copy, in addition to v@P.
v@pivot                     // Local pivot point for the copy.
3@transform or 4@transform  // Transform matrix overriding everything except v@P, v@pivot, and v@trans.
s@shop_materialpath         // The instanced object uses this material.
s@material_override         // A serialized Python dictionary mapping material parameter names to values.
s@instance
s@instancefile              // File path indicating what geometry to instance.
s@instancepath              // Geometry to instance. This is either a path to a file on disk or an op: path.

DOP attributes

DOP Particle Attributes

Particle systems are driven by attributes, here are some of the attributes used.

f@age       // Time in seconds since the particle was born.
f@life      // Time in seconds the particle is allowed to live. When f@age>f@life, i@dead will be set to 1.
f@nage      // Normalized age, f@age divided by f@life.  Implicit attribute, you cannot write to this.
i@dead      // Whether a particle is living (0) or dead (1).  A dead particle is deleted in the Reaping stage.
i@id        // A unique id for the particle that remains the same throughout a single simulation.

i@stopped   // Whether a particle is moving (0) or stopped (1).
i@stuck     // Whether a particle is free (0) or stuck (1).
i@sliding   // Whether a particle is free (0) or sliding along a surface (1).
f@cling     // Force applied to sliding particles inwards (according to the collision's surface normal).
s@pospath   // The path to the object that the particle is colliding with.
i@posprim   // Which collision primitive in the path geometry whose position we wish to refer to.
v@posuv     // Parametric uv on the collision primitive.

i@hittotal         // The cumulative total of all hits for the particle (only incremented once per timestep).
i@has_pprevious    // This is set to 1 if v@pprevious contains valid values.
v@pprevious        // Stores the position of the particle on the previous frame.  Used for collision detection.
i@hitnum           // The number of times the particle collided in the last POP Collision Detect.
s@hitpath          // The path to the object that was hit. A path to a file on disk or an op: path.
i@hitprim          // The primitive hit. Could be -1 if it the collision detector couldn’t figure out which prim.
v@hituv            // The parametric UV space on the primitive.
v@hitpos           // Where the hit actually occurred.  Useful if the colliding object was moving.
v@hitnml           // The normal of the surface at the time of the collision.
v@hitv             // The velocity of the surface at the time of the collision.
f@hittime          // When the collision occurred, that could be within a frame.
f@hitimpulse       // Records how much of an impulse was needed for the collision resolution.  varies with timestep.
f@bounce           // When particles bounce off another object, this controls how much energy they keep.
f@bounceforward    // Controls how much energy they keep in the tangential direction.
f@friction         // When particles bounce, they are slowed down proportional to how hard they hit.
s@collisionignore  // Objects that match this pattern will not be collided.

f@force            // Forces on the particle for this frame.
f@mass             // Inertia of the particle.
v@spinshape        // This is multiplied by f@pscale to determine the shape of the particle for rotational inertia.
f@drag             // How much the particle is effected by any wind effects.
f@dragexp          // Ranges from 1 to 2, default is set on the solver.  Used for both angular and linear drag.
v@dragshape        // How much the particle is dragged in each of its local axes.
v@dragcenter       // If specified, drag forces will also generate torques on the particle.
v@targetv          // The local wind speed. Thought of as the goal, or target, velocity for the particle.
f@airresist        // How important it is to match the wind speed.  Thickness of the air.
f@speedmin         // Minimum speed, in units per second, that a particle can move.
f@speedmax         // Maximum speed, in units per second, that a particle can move.

p@orient           // Orientation of the particle.  Used for figuring out 'local' forces.
v@w                // Angular speed of the particle.  A vector giving the rotation axis.
v@torque           // The equivalent of force for spins. No inertial tensor (the equivalent of mass) is supported.
v@targetw          // The goal spin direction and speed for this particle.
f@spinresist       // How important it is to match the targetw.
f@spinmin          // Minimum speed in radians per second that a particle can spin.
f@spinmax          // Maximum speed in radians per second that a particle can spin.

DOP Grains Attributes

Particles under control of POP Grains have the 'ispbd' attribute set to 1. This causes them to bypass movement update in the POP Solver, as the actual motion update is done by the POP Grains node.

i@ispbd                 // A value of 1 causes the particle to behave as grains.
f@pscale                // Used to determine the radius of each particle.
f@repulsionweight       // How much the particle collision forces are weighted.
f@repulsionstiffness    // How strongly particles are kept apart.  Higher values result in less bouncy repulsion.
f@attractionweight      // How much the particles will naturally stick together when close.
f@attractionstiffness   // How strongly nearby particles stick to each other.
v@targetP               // Particles are constrained to this location.
f@targetweight          // The weight of the v@targetP constraints.
f@targetstiffness       // The stiffness with which particles are fixed to their v@targetP attribute.

f@restlength            // Particles connected by polylines will be forced to maintain this distance (prim attribute).
f@constraintweight      // Scale, on a per-particle basis of the constraint force.
f@constraintstiffness   // This controls the stiffness on a per-particle basis.
f@strain                // This primitive attribute records how much the constraint is stretched.
f@strength              // If f@strain exceeds this primitive attribute, the constraint will be removed.

DOP Packed RBD Attributes

The Bullet Solver uses several point attributes to store the properties of each piece of a packed object.

i@active            // Specifies whether the object is able to react to other objects.
i@animated          // Specifies whether the transform should be updated from its SOP geometry at each timestep.
i@deforming         // Specifies whether the collision shape should be rebuilt from its SOP geometry each timestep.

f@bounce            // The elasticity of the object.
i@bullet_add_impact // Impacts that occur during the sim will be recorded in the Impacts or Feedback data.
i@bullet_ignore     // Specifies whether the object should be completely ignored by the Bullet solver.
f@bullet_angular_sleep_threshold // The sleeping threshold for the object’s angular velocity.
f@bullet_linear_sleep_threshold  // The sleeping threshold for the object’s linear velocity.
i@bullet_want_deactivate         // Disables simulation of a non-moving object until the object moves again.
i@computecom        // Specifies whether the center of mass should be computed from the collision shape.
i@computemass       // Specifies whether the mass should be computed from the collision shape and density.
f@creationtime      // Stores the simulation time at which the object was created.
i@dead              // Specifies whether the object should be deleted during the next solve.
f@density           // The mass of an object is its volume times its density.
f@friction          // The coefficient of friction of the object.
f@inertialtensorstiffness   // Rotational stiffness.  A scale factor applied to the inertial tensor.
i@inheritvelocity           // v and w point attributes from the SOP geometry will override the initial velocity.
f@mass          // The mass of the object.
s@name          // A unique name for the object. Used by Constraint Networks.
p@orient        // The orientation of the object.
v@P             // The current position of the object’s center of mass.
v@pivot         // The pivot that the orientation applies to. If i@computecom is non-zero, this is auto-computed.
v@v             // Linear velocity of the object.
v@w             // Angular velocity of the object, in radians per second.

i@bullet_adjust_geometry    // Shrinks the collision geometry.
i@bullet_autofit            // Use the bounds of the object for Box, Capsule, Cylinder, Sphere, or Plane.
f@bullet_collision_margin   // Padding distance between collision shapes.
s@bullet_georep             // Can be convexhull, concave, box, capsule, cylinder, compound, sphere, or plane.
i@bullet_groupconnected     // Create convex hull per set of connected primitives.
f@bullet_length             // The length of the Capsule or Cylinder collision shape in the Y direction.
v@bullet_primR              // Orientation of the Box, Capsule, Cylinder, or Plane collision shape.
v@bullet_primS              // Size of the Box collision shape.
v@bullet_primT              // Position of the Box, Sphere, Capsule, Cylinder, or Plane collision shape.
f@bullet_radius             // Radius of the Sphere, Capsule, or Cylinder collision shape.
f@bullet_shrink_amount      // Specifies the amount of resizing done by Shrink Collision Geometry.

s@activationignore          // Won't be activated by collisions with any objects that match this pattern.
s@collisiongroup            // Specifies the name of a collision group that this object belongs to.
s@collisionignore           // The object will not collide against any objects that match this pattern.
f@min_activation_impulse    // Minimum impulse that will cause the object to switch from inactive to active.

f@speedmin      // Minimum speed, in units per second, that a particle can move.
f@speedmax      // Maximum speed, in units per second, that a particle can move.
f@spinmin       // Minimum speed in radians per second that a particle can spin.
f@spinmax       // Maximum speed in radians per second that a particle can spin.
f@accelmax      // Limits the change in the object’s speed that is caused by enforcing constraints.
f@angaccelmax   // Limits the change in the object’s angular speed that is caused by enforcing constraints.

f@airresist     // Specifies how important it is to match the target velocity (v@targetv).
f@drag          // How much the the v@targetv and f@airresist attributes effect the object.
f@dragexp       // Ranges from 1 to 2, default is set on the solver.  Used for both angular and linear drag.
v@force         // Specifies a force that will be applied to the center of mass of the object.
f@spinresist    // Specifies how important it is to match the target angular velocity (v@targetw).
v@targetv       // Target velocity for the object. Used in combination with the f@airresist attribute.
v@targetw       // Target angular velocity for the object. Used in combination with the f@spinresist attribute.
v@torque        // Specifies a torque that will be applied to the object.

i@bullet_autofit_valid  // Stores whether the solver has already computed collision shape attributes.
i@bullet_sleeping       // Tracks whether the object has been put to sleep by the solver.
f@deactivation_time     // Amount of time the speed has been below the Linear Threshold or Angular Threshold.
i@found_overlap         // Used by the solver to determine whether it has performed the overlap test.
i@id                    // A unique identifier for the object.
i@nextid                // Stores the i@id the solver will assign to the next new object.

DOP RBD Constraint Attributes

Attributes on the geometry to customize each constraint behavior and type. If a primitive attribute with the same name as a constraint property (such as damping) is present, the attribute value will be multiplied with the value from the constraint sub-data.

s@constraint_name    // Specifies a piece of relationship data by name, such as 'Glue' or 'Spring'.
s@constraint_type    // Specifies whether the constraint affects 'position', 'rotation' or 'all' degrees of freedom.
f@restlength         // Specifies the desired length of the constraint to enforce.
f@width              // Width of each edge.
f@density            // Density of each point.
p@orient             // Initial orientation of each point. Value stored as a quaternion.
v@v                  // Initial velocity of each point.
v@w                  // Initial angular velocity of each point measured in radians per second.
f@friction           // Friction of each point.
f@klinear            // Defines how strongly the wire resists stretching.
f@damplinear         // Defines how strongly the wire resists oscillation due to stretching forces.
f@kangular           // Defines how strongly the wire resists bending.
f@dampangular        // Defines how strongly the wire resists oscillation due to bending forces.
f@targetstiffness    // Defines how strongly the wire resists deforming from the animated position.
f@targetdamping      // Defines how strongly the wire resists oscillation due to stretch forces.
f@normaldrag         // The component of drag in the directions normal to the wire.
f@tangentdrag        // The component of drag in the direction tangent to the wire.
i@nocollide          // Collision detection for the edge is disabled (Only used if Collision Handling is SDF).
v@restP              // Rest position of each point.
p@restorient         // Rest orientation of each point.
i@gluetoanimation    // Causes a point’s position and orientation to be constrained to the input geometry.
i@pintoanimation     // Causes a point’s position to be constrained to the input geometry.
v@animationP         // Target position of each point.
p@animationorient    // Target orientation of each point.
v@animationv         // Target velocity of each point.
v@animationw         // Target angular velocity of each point.
i@independentcollisionallowed   // Toggle external collisions (Only non-SDF Geometric Collision).
i@independentcollisionresolved  // Unresolved external collisions (Only non-SDF Geometric Collision).
i@codependentcollisionallowed   // Toggle soft body collisions (Only non-SDF Geometric Collision).
i@codependentcollisionresolved  // Unresolved toggle soft body collisions (Only non-SDF Geometric Collision).
i@selfcollisionallowed          // Toggle self collisions (Only non-SDF Geometric Collision).
i@selfcollisionresolved         // Unresolved toggle self collisions (Only non-SDF Geometric Collision).

DOP FLIP Attributes

The FLIP Solver contains an embedded POP Solver, so all of POP Attributes listed above apply.

f@pscale        // Particle scale
v@v             // Particle velocity
f@viscosity     // The "thickness" of a fluid.
f@density       // The mass per unit volume.
f@temperature   // The temperature of the fluid.
f@vorticity     // Measures the amount of circulation in the fluid.
f@divergence    // Positive values cause particles to spread out, negative cause them to clump together.
v@rest          // Used to track the position of the fluid over time.
v@rest2         // Used for blending dual rest attributes, avoids stretching.
f@droplet       // Identifies particles that separate from the main body of fluid.
f@underresolved // Particles that haven't fully resolved on the grid.
i@ballistic     // Specifies particles which will be ignored by the fluid solve.
v@Lx            // Angular momentum X axis
v@Ly            // Angular momentum Y axis
v@Lz            // Angular momentum Z axis

DOP Vellum Attributes

Vellum geometry is also considered particles, so all of POP Attributes listed above apply.
Point attributes unless otherwise stated.

i@isgrain           // A value of 1 causes the particle to behave as grains, 0 behaves as cloth.
f@attractionweight  // How much the particles will naturally stick together when close, zero disables clumping.
v@v                 // Point velocity.
p@w                 // (Hair or Wire) angular velocity.
Parameters
f@dragnormal        // How much to scale wind effects when the face of the cloth is heading straight into the wind...
f@dragtangent       // versus sliding parallel to it.
f@inertia           // Resistance of a particle to rotational constraints. If zero, the particle won't rotate.
i@weld              // Weld this point to a point number.  If there is an @id attribute, then to a point id.
i@branchweld        // built by hair constraints when it is forced to split points for hair simulation.
i@collisionweld     // generated on demand to provide a single weld to the detangle algorithm.
f@friction          // How much to scale the static friction.
f@dynamicfriction   // How much to scale the dynamic friction.
f@pressurescale     // How much to scale the effect of a Pressure constraint on a per-point basis, from 0 to 1.
State
i@stopped           // Used to pin points (0=free, 1=no motion, 2=no rotation, 3=no rotate or move).
p@orient            // (Hair or Wire) orientations.
i@dead              // If set to 1 the point and any associated constraints will be removed from the simulation.
v@pprevious         // For 1st order integration, the previous frames position (beginning of timestep).
v@plast             // For 2nd order integration, the position from two frames earlier.
v@vprevious         // For 1st order integration, the previous frames velocity (beginning of timestep).
v@vlast             // For 2nd order integration, the velocity from two frames earlier.
p@orientprevious    // For 1st order integration, the previous frames orientation (beginning of timestep).
p@orientlast        // For 2nd order integration, the orientation from two frames earlier.
p@wprevious         // For 1st order integration, the previous frames angular velocity (beginning of timestep).
p@wlast             // For 2nd order integration, the angular velocity from two frames earlier.
Collisions
f@pscale            // Used to determine the thickness of cloth or radius of each particle.
f@overlap_self      // Stores how much of the original pscale is overlapped.
f@overlap_external  // Stores how much of the original pscale is overlapped.
i@layer             // Indicates belonging to different layers of cloth. Higher numbers refer to higher layers.
i@disableself       // A value of 0 means this point will use self collisions.
i@disableexternal   // A value of 0 means this point will use external collisions.
s@collisionignore   // Stores a pattern for the objects and collision groups to not collide with.
s@collisiongroup    // Gives the collision group that this point belongs to.
Targeting
s@target_path       // target path for any pins (when the Target parameter is set in Vellum Source)
i@target_pt         // target point number for any pins (when the Target parameter is set in Vellum Source)
i@pintoanimation    // If 1, the pinned points' position will be updated to match the target point.
i@gluetoanimation   // If 1, both the position and orientation will be updated
f@targetweight      // Affect the strength of the pinned points using a 0..1 weighting value.
Breaking
f@breakthreshold    // The threshold for breaking welds and branch welds
s@breaktype         // 'stretchstress', 'bendstress', 'stretchdistance', 'stretchratio', or 'bendangle'.
Internal worker variables
// Internal worker variables (Kept to avoid removing/adding attributes every frame)
f@dP                // Constraint displacements.  Likely of last iteration.
f@dPw               // Constraint weights.  Likely of last iteration.
s@patchname         // Identifies each generated patch in a simulation so it can be updated/replaced.
Pressure
// When a point is part of a Pressure constraint, these attrs hold values computed during constraint update.
v@pressuregradient  // a vector pointing outwards along the direction of greatest volume gain.
i[]@volumepts       // contains array of the points needed to compute the volume attribute.
i@volume            // compare against the Pressure constraint’s restlength value.

Dop Vellum Constraint Attributes

There are many types of constraints, so the meaning of these variables is often dependent on the constraint type. They usually live on the primitive.

s@constraint_tag        // The name of the node which created the constraint.
Parameters
f@dampingratio          // Damping reduces jitter by bleeding energy when evaluating the constraint. Too much damping can prevent the constraint from being satisfied. Values less than 1 must be used.
f@restlength            // he initial “distance” of the constraint. The units are variable. Distance constraints use distance, bend constraints use angle in degrees
f@restlengthorig
point@restvector        // Prim. Orientation constraints need a rest orientation, so store a quaternion here. This vector is also used to store target positions for pin constraints.
v@rest                  // The original point position in rest space, used by shapematch constraints
f@stiffness             // Prim. The stiffness of the constraint, which controls how strongly the constraint pulls. High values may not be achieved with a given iteration count, but low values should stop getting stronger at a certain iteration level.
f@compressionstiffness  // Prim. How strongly to enforce the constraint when it is being compressed.
f@stiffnessdropoff      // Prim
f@stiffnessscaled
f@stiffnessdropoffmin
s@type                  // Prim. Type of the constraint.
State
f@stress                // Estimate of work done by the constraint (updated by Vellum solver).
Sliding
f@slidingrate           // Prim. The rate at which the target location should slide along the primitives specified by target_path within target_group
s@target_group
s@slidingattrib
s@attribpromote
Breaking
f@breakthreshold       // Prim. The threshold for breaking the constraint, measured against the breaktype
s@breaktype
Plasticity
f@plasticthreshold
f@plasticrate
f@plastichardening
f@plasticflow
Targeting
i@matchanimation       // Prim. If set to 1 for pin constraints, the solver will lookup the constrained point’s target_path and target_p
Internal worker variables
v@L                  // Prim. The amount of work done by a constraint, possibly along different stiffness or compression stiffness axes. Generally you should use the stress attribute instead to determine how much work a constraint is doing.
i@pts                // Prim. Array of points affected by this constraint.

Kine FX Attributes

A KineFX hierarchy or skeleton is represented by a collection of points connected by polygon lines. The parent-child relationship between joints in a hierarchy is determined by vertex order.

s@name             // joint name attribute
3@transform        // World space 3×3 transform of the point (rotation, scale, and shear).
4@localtransform   // The transform of the point relative to its parent.
i@scaleinheritance // Determines how a point inherits the local scale from its parent.

Viewport Display Attributes

Override the viewport display mode

i@gl_wireframe     // Detail attribute, force wireframe (1) or shaded (-1)
i@gl_lit           // Detail attribute, draw with lighting (1) or no lighting (0)
i@gl_showallpoints // Detail attribute, draw points even if connected to geometry
f@vm_cuspangle     // Detail attribute, angle in degrees for generating cusped normals
i@gl_spherepoints  // Detail attribute, (1) causes unconnected points to be drawn as spheres
i@gl_xray          // Detail attribute, (1) geometry will visible even when it is hidden behind other geometry

v@Cd               // Color Diffuse
f@Alpha            // Surface opacity
v@N                // Surface Normal for lighting
f@width            // Curve width
f@pscale           // If no pscale exists the viewport defaults to 1.0, while Mantra defaults to 0.1
s@spritepath
s@shop_materialpath
i@group__3d_hidden_primitives  // Add primitives to this group to hide them from the 3D viewport

f@intrinsic:volumevisualdensity // Primitive intrinsic attribute controlling the opacity of volumes.
f@volvis_shadowscale // Detail attribute controlling the shadow strength for volumes.

Accessing other inputs

This syntax is used to refer to nodes wired into the inputs of the wrangle, or other nodes in the network.

// 'opinput:X' is the most legible and always works (the first input is input 0).
point('opinput:0', 'P', i@ptnum)
point('opinput:1', 'P', i@ptnum)
point('opinput:2', 'P', i@ptnum)
point('opinput:3', 'P', i@ptnum)

// The integer input number (the first input is 0).  Some functions don't support this but it's easy to type.
point(0, 'P', i@ptnum)
point(1, 'P', i@ptnum)
point(2, 'P', i@ptnum)
point(3, 'P', i@ptnum)

// @OpInputX works as well, but be careful as it isn't 0 based, instead it starts at 1 which is confusing
point(@OpInput1, 'P', i@ptnum)
point(@OpInput2, 'P', i@ptnum)
point(@OpInput3, 'P', i@ptnum)
point(@OpInput4, 'P', i@ptnum)

// v@opinputX_* reads an attribute from the same element on the numbered input (first input is input 0).
v@opinput0_P
v@opinput1_P
v@opinput2_P
v@opinput3_P

// Absolute and relative paths to other nodes look like this.
point('op:/obj/geo1/OUT', 'P', i@ptnum)
point('op:../../OUT', 'P', i@ptnum)

For Loop metadata

Detail attributes, You can get this information with a “Fetch metadata” Block Begin node.

i@numiterations      // The expected total number of iterations
i@iteration          // The current iteration number, always starting at 0 and increasing by 1 each loop.
f@value              // In piece-wise loops, this is the current value of the attribute
i@ivalue             // In simple repetition, this is an integer version of value.
